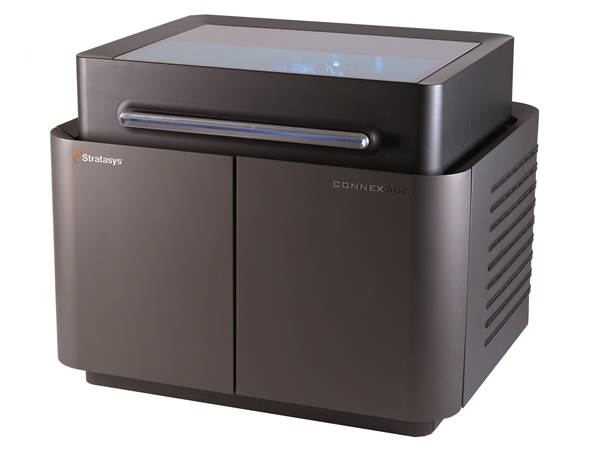

Objet500 Connex1 Specifications



Model materials:

  • Rigid Opaque (VeroWhitePlus, VeroBlackPlus, VeroGray and VeroBlue)
  • Rubber-like (Tango family)
  • Transparent (RGD720 & VeroClear)
  • Simulated Polypropylene(Endur and Durus)
  • Biocompatible (MED610)
  • High Temperature (RGD525)

Support material:
FullCure 705 non-toxic gel-like photopolymer support

Build Size:
Objet350 Connex1: 342 x 342 x 200 mm (13.4 x 13.4 x 7.9 in.)
Objet500 Connex1: 490 x 390 x 200 mm (19.3 x 15.4 x 7.9 in.)

Layer Thickness:
Horizontal layers as fine as 16-microns (0.0006 in.)

Workstation Compatibility:
Windows 7

Network Connectivity:
LAN – TCP/IP

Size and Weight:
1400 x 1260 x 1100 mm (55.1 x 49.6 x 43.3 in.) 430 kg (948 lbs)

Material Cabinet:
330 x 1170 x 640 mm (13 x 46.1 x 26.2 in.) 76 kg (168 lbs)

Power Requirements:
110–240 VAC 50/60 Hz; 1.5 KW single phase

Regulatory Compliance:
CE, FCC

Operating Conditions:
Temperature 18-25 °C (64-77 °F); relative humidity 30-70% (non-condensing)
