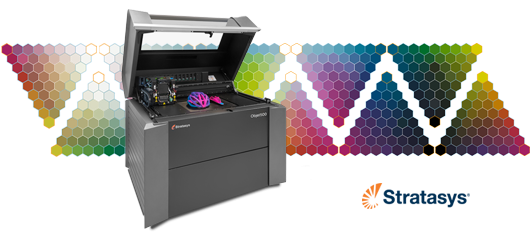

Connex 3

objet_connex_3_1
objet_connex1_1
objet_connex1_2

Connex3 Systems Specifications



Model materials:

  • Vero family of opaque materials, including various neutral shades and vibrant colors
  • Tango family rubber-like flexible materials
  • Medical: MED610
  • Digital ABS and Digital ABS2 in ivory and green
  • DurusWhite RGD430
  • High Temperature RGD525 white
  • Transparent: VeroClear and RGD720

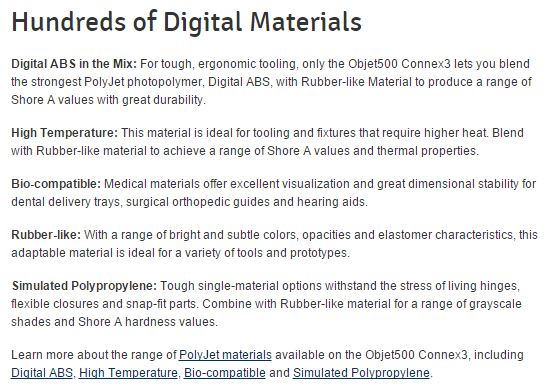

Digital model materials:

Hundreds of composite materials can be manufactured on the fly including:

  • Digital ABS
  • Rubber-like materials in a variety of Shore A values
  • Vibrant blended colors in rigid opaque
  • Translucent colored tints
  • Polypropylene-like materials with improved thermal resistance

Support material:
SUP705 non-toxic gel-like photopolymer support

Net build size:
Objet350 Connex3: 342 × 342 × 200 mm (13.4 × 13.4 × 7.9 in.)
Objet500 Connex3: 490 × 390 × 200 mm (19.3 × 15.4 × 7.9 in.)

Layer thickness:
Horizontal build layers down to 16 microns (0.0006 in.)

Print speed:
Printing mode builds parts at 12 mm per hour/strip in 16-micron (0.0006 in.)

Build resolution:
X-axis: 600 dpi; Y-axis: 600 dpi; Z-axis: 1600 dpi

Printing Modes:

  • Digital material: 30-micron (0.001 in.) resolution
  • High quality: 16-micron (0.0006 in.) resolution
  • High speed: 30-micron (0.001 in.) resolution

Accuracy:
20-85 micron for features below 50 mm; up to 200 micron for full model size (for rigid materials only, depending on geometry, build parameters and model orientation)

Input Format:
STL, OBJDF and SLC File

Workstation compatibility:
Windows 7 64-bit or Windows 8 64-bit

Network connectivity:
LAN – TCP/IP

Size and weight:
1400 x 1260 x 1100 mm (55.1 x 49.6 x 43.3 in.)
430 kg (948 lbs)

Material Cabinet:
330 (w) x 1170 (h) x 640 (d) mm
(13 x 46.1 x 26.2 in.)
76 Kg (168 lbs.)

Print heads:
8 units

Power Requirements:
110–240 VAC 50/60 Hz; 1.5 KW single phase

Operational Environment:
Temperature 18 C-25 C (64 F-77 F); relative humidity 30-70 percent (non-condensing)
