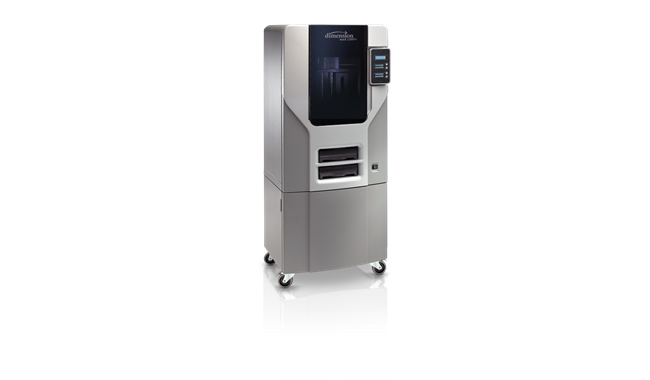

Dimension 1200es Printer Specs



Model material:
ABSplus in nine colors

Support material:
Soluble (SST 1200es); breakaway (BST 1200es)

Build size:
254 x 254 x 305 mm (10 x 10 x 12 in.)

Layer thickness:
0.33 mm (0.013 in.) or .254 mm (.010 in.)

Workstation compatibility:
Windows XP/Windows 7

Network connectivity:
Ethernet TCP/IP 10/100 base T

Size and weight:
838 x 737 x 1143 mm (33 x 29 x 45 in.); 148 kg (326 lbs.)

Power Requirements:

  • Dimension 1200es 3D printer: 100–120 VAC 60 Hz, minimum 15A dedicated circuit or 220–240 VAC 50/60 Hz, minimum 7A dedicated circuit

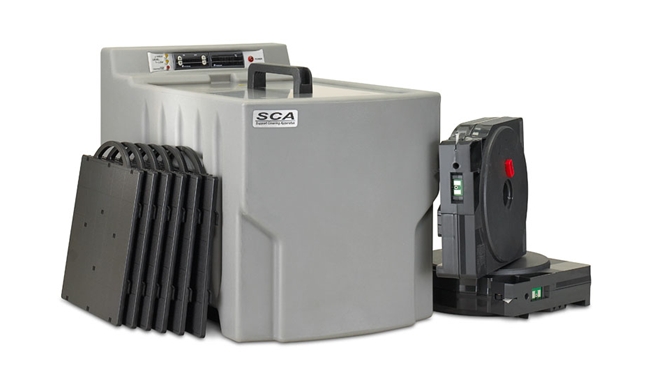

  • SCA-1200 support-removal system: 100-120 VAC, 15A, 60 Hz or 220-240 VAC, 10A, 50 Hz

Regulatory Compliance:

  • Dimension 1200es 3D printer: CE/ETL
  • SCA-1200 support-removal system: CE

Special Facility Requirements:
None
