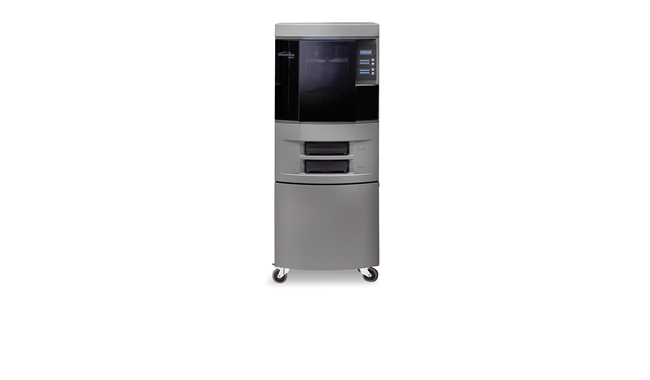

Dimension Elite

Dimension_Elite
Dimension_Elite_specs
Dimension_Elite_shock

Dimension Elite Product Specs



Model material:

ABSplus in nine colors

Support material:

Soluble or breakaway

Build size:

203 x 203 x 305 mm (8 x 8 x 12 in.)

Layer thickness:

0.254 mm (0.010 in.) or 0.178 mm (0.007 in.)

Workstation compatibility:

Windows XP/Windows 7

Network connectivity:

Ethernet TCP/IP 10/100 base T

Size and weight:

686 x 914 x 1041 mm (27 x 36 x 41 in.); 136 kg (300 lbs.)

Power Requirements:

  • Dimension Elite 3D Printer: 100–120 VAC 60 Hz, minimum 15A dedicated circuit or 220–240 VAC 50/60 Hz, minimum 7A dedicated circuit
  • SCA-1200 support-removal system: 100-120 VAC, 15A, 60 Hz or 220-240 VAC, 10A, 50 Hz

Regulatory Compliance:

  • Dimension Elite 3D Printer: CE/ETL
  • SCA-1200 Support Removal System: CE

Special Facility Requirements:

None
