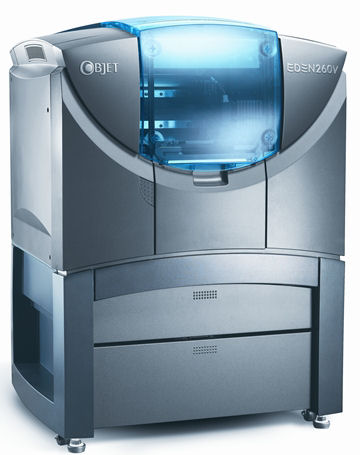

Eden 260v

Eden_260v_crop
eden_series_summary
Brochure Contact Us



*Video shows Eden 500 which is a larger version of the 260, but still operates the same.

Specifications

Model materials:

Support material:
All Eden 3D printers work with SUP705 non-toxic gel-like photopolymer support. Additionally, the Eden260VS works with SUP707 soluble support when using VeroGray, VeroBlue and VeroClear in high-quality mode, or VeroWhitePlus in high-speed or high-quality mode.

Material cartridges:
Sealed four 3.6 kg (7.9 lbs) cartridges

Net Build size:
Eden260V: 255 × 252 × 200 mm (10.0 x 9.9 x 7.9 in.)
Eden260VS: 255 × 252 × 200 mm (10.0 x 9.9 x 7.9 in.)
Eden350V: 340 × 340 × 200 mm (13.4 × 13.4 × 7.9 in.)
Eden500V: 490 × 390 × 200 mm (19.3 x 15.35 x 7.9 in.)

Layer thickness:
Horizontal build layers as fine as 16 microns (0.0006 in.)

Build resolution:
X-axis: 600 dpi; Y-axis: 600 dpi; Z-axis: 1600 dpi

Accuracy:
20-85 um for features below 50 mm; up to 200 um for full model size (for rigid materials only, depending on geometry, build parameters and model orientation)

Workstation compatibility:
Windows 7 32/64-bit

Network connectivity:
LAN – TCP/IP

Size and weight:
Eden260V: 870 × 735 × 1200 mm (34.3 x 28.9 x 47.2 in.); 264 kg (582 lbs)
Eden260VS: 870 × 735 × 1200 mm (34.3 x 28.9 x 47.2 in.); 264 kg (582 lbs)
Eden350V: 1320 × 990 × 1200 mm (52.0 × 39.0 × 47.25 in.); 410 kg (902 lbs)
Eden500V: 1320 × 990 × 1200 mm (52.0 × 39.0 × 47.25 in.); 410 kg (902 lbs)

Jetting heads:
SHR (Single Head Replacement), 8 units

Power requirements:
110–240 VAC 50/60 Hz; 1.5 KW single phase

Operational environment:
Temperature 18 C-25 C (64 F-77 F); relative humidity 30-70% (non-condensing)
