*Video shows Eden 500 which is a larger version of the 350, but still operates the same.
Specifications
Model materials:
- Transparent rigid (VeroClear)
- Rubber-like (Tango family)
- Transparent general-purpose (FullCure RGD720)
- Rigid Opaque (Vero family)
- Polypropylene-like (DurusWhite)
- High Temperature (RGD525)
Support material:
All Eden 3D printers work with SUP705 non-toxic gel-like photopolymer support. Additionally, the Eden260VS works with SUP707 soluble support when using VeroGray, VeroBlue and VeroClear in high-quality mode, or VeroWhitePlus in high-speed or high-quality mode.
Material cartridges:
Sealed four 3.6 kg (7.9 lbs) cartridges
Net Build size:
Eden260V: 255 × 252 × 200 mm (10.0 x 9.9 x 7.9 in.)
Eden260VS: 255 × 252 × 200 mm (10.0 x 9.9 x 7.9 in.)

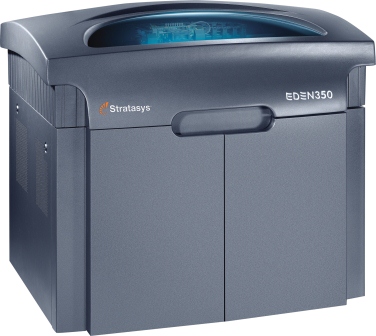

Eden350V: 340 × 340 × 200 mm (13.4 × 13.4 × 7.9 in.)
Eden500V: 490 × 390 × 200 mm (19.3 x 15.35 x 7.9 in.)
Layer thickness:
Horizontal build layers as fine as 16 microns (0.0006 in.)
Build resolution:
X-axis: 600 dpi; Y-axis: 600 dpi; Z-axis: 1600 dpi
Accuracy:
20-85 um for features below 50 mm; up to 200 um for full model size (for rigid materials only, depending on geometry, build parameters and model orientation)
Workstation compatibility:
Windows 7 32/64-bit
Network connectivity:
LAN – TCP/IP
Size and weight:
Eden260V: 870 × 735 × 1200 mm (34.3 x 28.9 x 47.2 in.); 264 kg (582 lbs)
Eden260VS: 870 × 735 × 1200 mm (34.3 x 28.9 x 47.2 in.); 264 kg (582 lbs)
Eden350V: 1320 × 990 × 1200 mm (52.0 × 39.0 × 47.25 in.); 410 kg (902 lbs)
Eden500V: 1320 × 990 × 1200 mm (52.0 × 39.0 × 47.25 in.); 410 kg (902 lbs)
Jetting heads:
SHR (Single Head Replacement), 8 units
Power requirements:
110–240 VAC 50/60 Hz; 1.5 KW single phase
Operational environment:
Temperature 18 C-25 C (64 F-77 F); relative humidity 30-70% (non-condensing)
