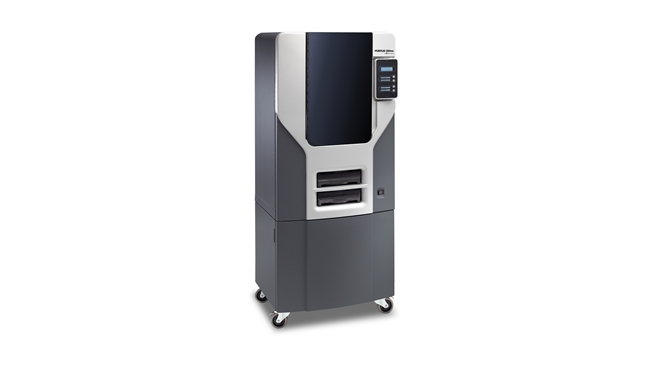

Fortus 250mc

Fortus_250mc
Fortus_250specs
Fortus_250sample

Fortus 250mc Product Specs



Material:
ABSplus-P430

Build envelope (XYZ):
254 x 254 x 305 mm (10 x 10 x 12 in.)

Material delivery:
One build material cartridge and one support material cartridge, each 923 cc (56.3 in3)

Layer thicknesses:

  • 0.013 inch (0.330 mm)
  • 0.010 inch (0.254 mm)
  • 0.007 inch (0.178 mm)

Support structure:
Soluble

Available colors:
Ivory, black, blue, dark grey, fluorescent yellow, nectarine, olive green, red, white, and custom colors

System size/weight:
838 x 737 x 1143 mm (33 x 29 x 45 in.)/with crate: 186 kg (409 lbs.), without crate: 148 kg (326 lbs.)

Achievable accuracy:
Parts are produced within an accuracy of ± .241 mm (± .0095 in.). (Accuracy is geometry dependent. Achievable accuracy specification derived from statistical data at 95% dimensional yield.)

Network communication:
10/100 base T connection; Ethernet protocol

Operator attendance:
Limited attendance required for job start and stop

Operating environment:
Maximum room temperature of 30 C (86 F)

Relative humidity range:
30 to 70 percent, noncondensing

Power requirements:
110–120 VAC, 60 Hz, minimum 15A dedicated circuit; or 220–240 VAC 50/60 Hz,minimum 7A dedicated circuit.

Regulatory compliance:
CE/ETL

Software:
All Fortus Systems include Insight and Control Center job-processing and management software.
