Fortus 360/400mc

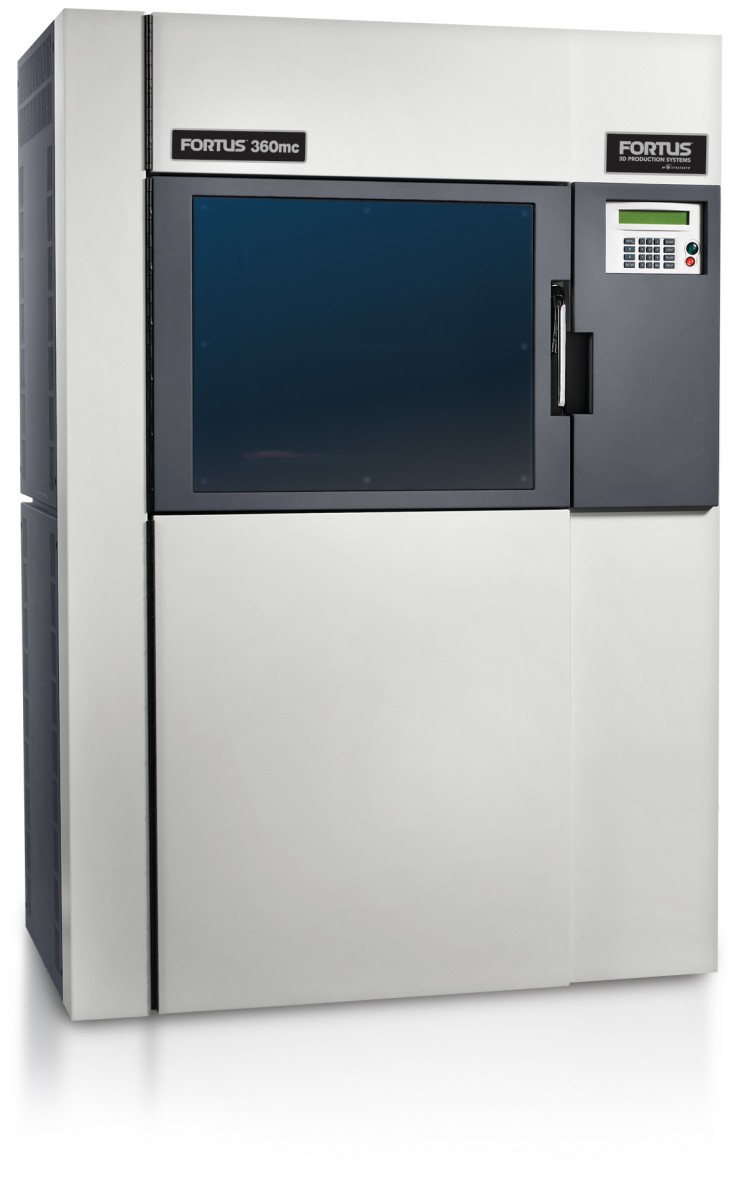

fortus_360

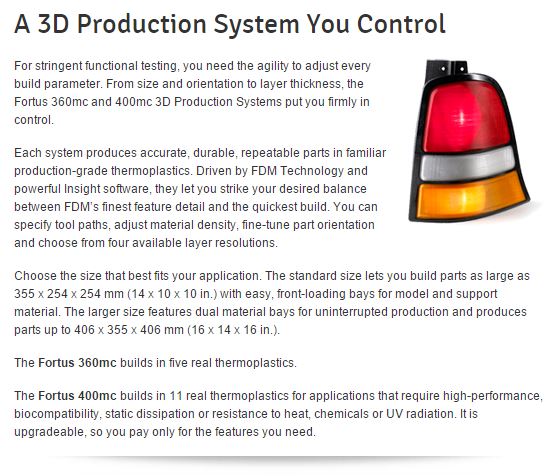

Fortus_360_spec

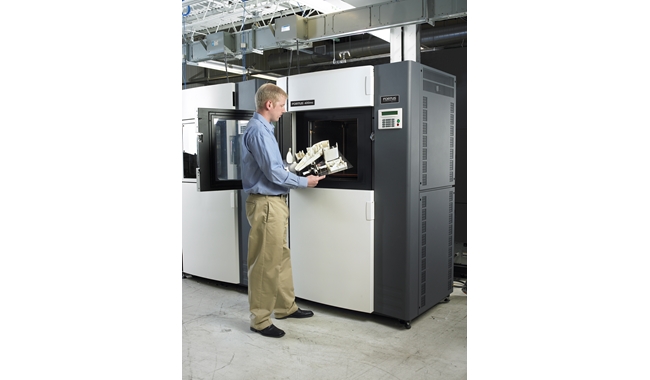

fortus_400mc_engineer_part

Fortus 360mc and 400mc Product Specs

Materials:
Fortus 360mc and 400mc:

  • ABS-M30
  • ASA
  • FDM Nylon 12
  • PC
  • PC-ABS

Fortus 400mc only:

    • ABS-ESD7
    • ABSi
    • ABS-M30i
    • PC-ISO
    • PPSF
    • ULTEM 9085

Build envelope options:
355 x 254 x 254 mm (14 x 10 x 10 in.)
406 x 355 x 406 mm (16 x 14 x 16 in.)

Material delivery options:
One bay each for material and support canisters
Two bays each for material and support canisters (with larger build envelope)

Layer thicknesses:
0.330 mm (0.013 in.)
0.254 mm (0.010 in.)
0.178 mm (0.007 in.)
0.127 mm (0.005 in.)

Support structure:
Soluble for most materials; break-away for PC-ISO, ULTEM and PPSF; soluble or break-away for PC

System size/weight:
1281 x 896 x 1962 mm (50.5 x 35.5 x 77.3 in.)/with crate: 786 kg (1,511 lbs.), without crate: 593 kg (1,309 lbs.)

Achievable accuracy:
Parts are produced within an accuracy of ± .127 mm (± .005 in.) or ± .0015 mm/mm (± .0015 in/in), whichever is greater. (Accuracy is geometry dependent. Achievable accuracy specification derived from statistical data at 95% dimensional yield.)

Network communication:
10/100 base T connection; Ethernet protocol

Power requirements:
230 VAC, 50/60 Hz, 3 phase, 16A/phase (20 amp dedicated circuit required)

Regulatory compliance:
CE

Special facility requirements:
None
