Fortus 380/450mc

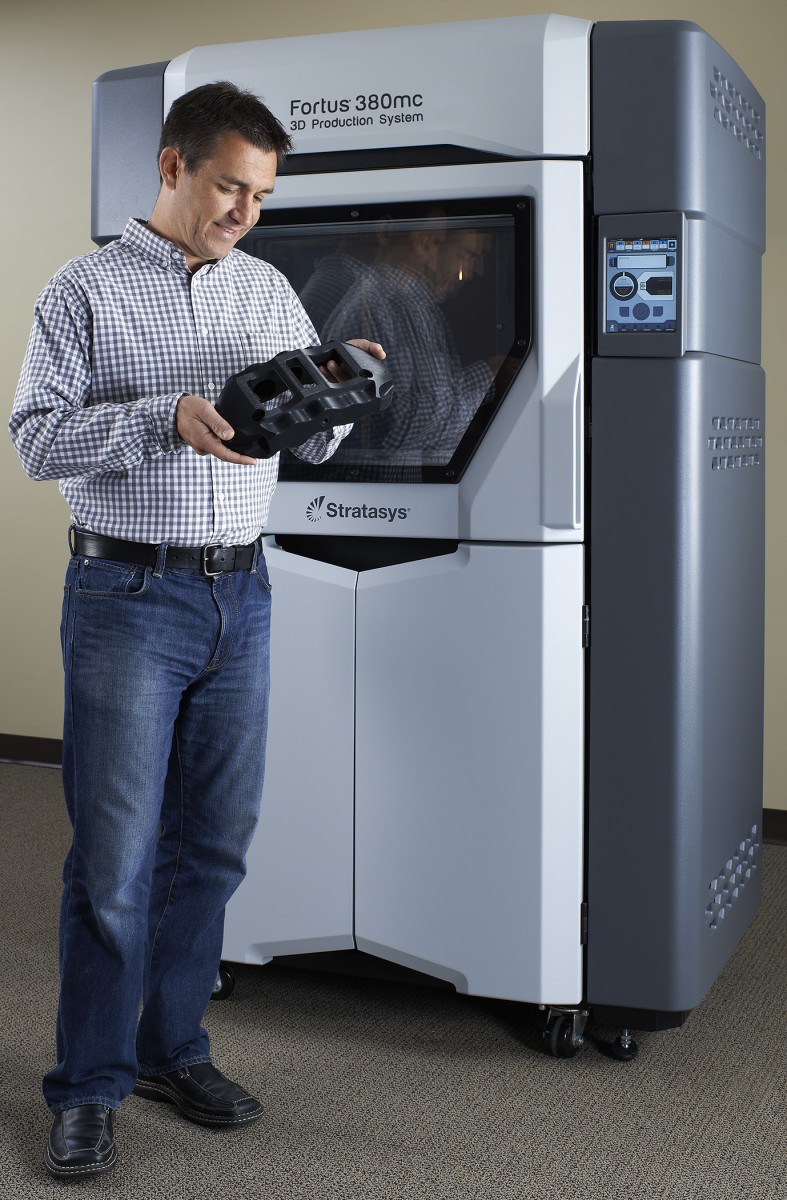

Fortus_380_Part_Caliper_Human_MQ

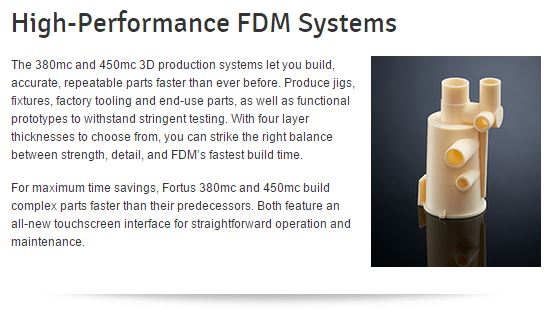

Fortus450_summary

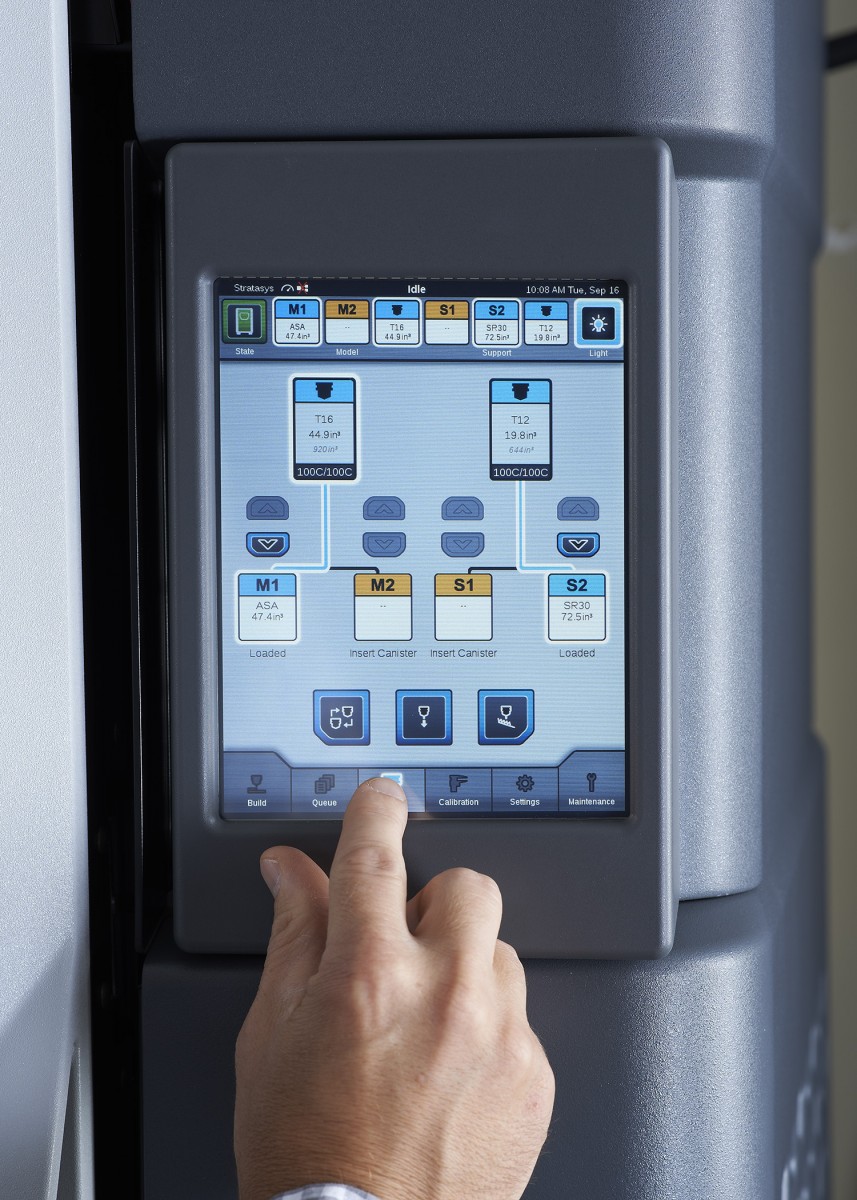

Fortus_TouchPad_fingers_003_MQ

Fortus 380mc and 450mc Specs

Materials:
Fortus 380mc and 450mc:

  • ABS-M30
  • ABS-M30i
  • ABS-ESD7
  • ASA
  • PC-ISO
  • PC
  • FDM Nylon 12

Fortus 450mc only:

  • ULTEM 9085
  • ULTEM 1010 (coming in 2015)

Build envelope options:
Fortus 380mc: 355 x 305 x 305 mm (14 x 12 x 12 in.)
Fortus 450mc: 406 x 355 x 406 mm (16 x 14 x 16 in.)

Material delivery options:
Fortus 380mc: One bay each for material and support canisters
Fortus 450mc: Two bays each for material and support canisters

Layer thicknesses:
0.330 mm (0.013 in.)
0.254 mm (0.010 in.)
0.178 mm (0.007 in.)
0.127 mm (0.005 in.)

Support structure:
Soluble for most materials; break-away for PC-ISO and ULTEM; soluble or break-away for PC

System size/weight:
127 x 90.17 x 194.31 cm (50 x 25.5 x 76.5 in.)/with crate: 680 kg (1,500 lbs.), without crate: 601 kg (1,325 lbs.)

Achievable accuracy:
Parts are produced within an accuracy of ± .127 mm (± .005 in.) or ± .0015 mm/mm (± .0015 in/in), whichever is greater. (Accuracy is geometry dependent. Achievable accuracy specification derived from statistical data at 95% dimensional yield.)

Network communication:
10/100 base T connection; Ethernet protocol

Power requirements:
208 VAC, 50/60 Hz, 3 phase, 16A/phase (20 amp dedicated circuit required)

Regulatory compliance:
CE

Special facility requirements:
None
