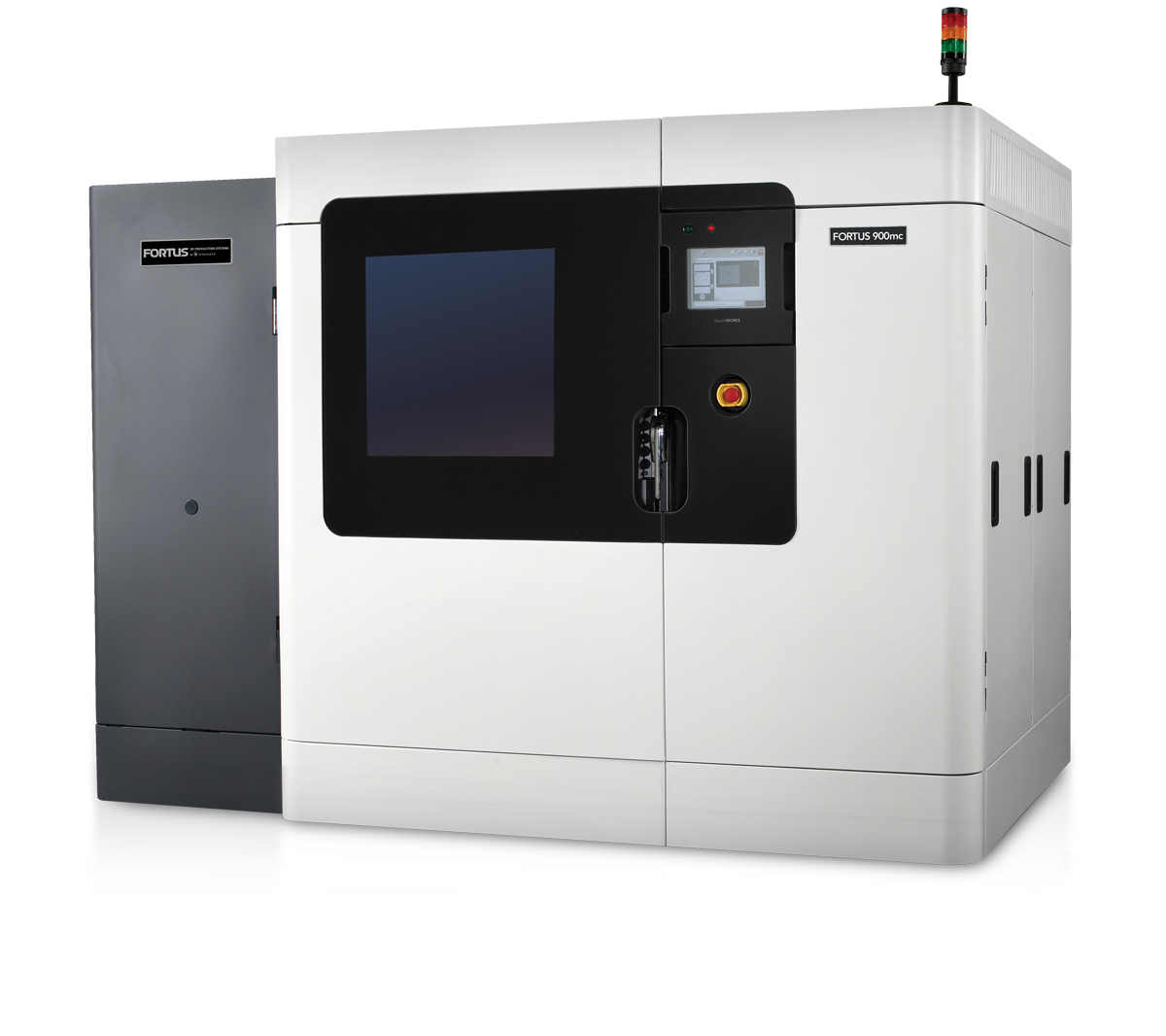

Fortus 900mc

fortus_900

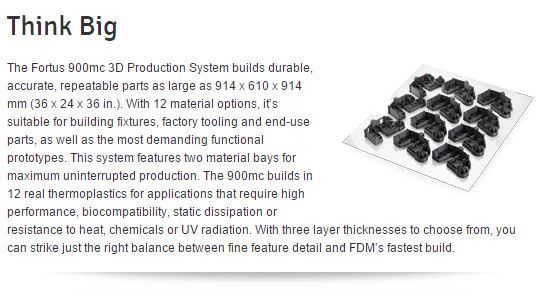

fortus900_summary
fortus900_ultemfender

Fortus 900mc Product Specs



Materials:

Build envelope:
914 x 610 x 914 mm (36 x 24 x 36 in.)

Material delivery:
Two bays each for material and support canisters

Layer thicknesses:

  • 0.330 mm (0.013 in.)
  • 0.254 mm (0.010 in.)
  • 0.178 mm (0.007 in.)

Support structure:
Soluble for most materials; break-away for PC-ISO, ULTEM and PPSF; soluble or break-away for PC

System size/weight:
2772 x 1683 x 2027 mm (109.1 x 66.3 x 79.8 in.)/with crate: 3287 kg (7247 lbs.), without crate: 2869 kg (6325 lbs.)

Achievable accuracy:
Parts are produced within an accuracy of ± .09 mm (± .0035 in.) or ± .0015 mm/mm (± .0015 in/in), whichever is greater. (Accuracy is geometry dependent. Achievable accuracy specification derived from statistical data at 95% dimensional yield.)

Network communication:
10/100 base T connection; Ethernet protocol

Power requirements:

  • 230VAC nominal three-phase service with 5% regulation
  • 230VAC as measured phase-to-phase; 50 Hz or 60Hz; 40 Amp circuit

Regulatory compliance:
CE

Special facility requirements:
None
