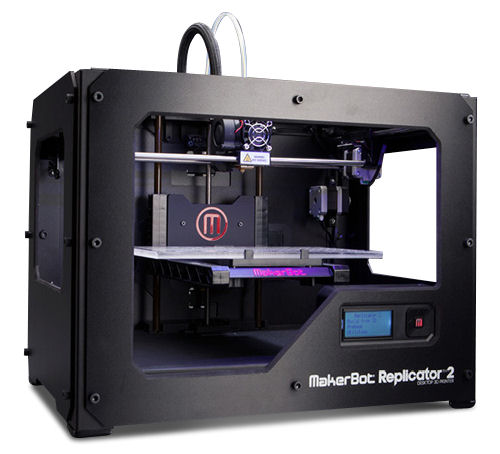

MakerBot Replicator 2 Tech Specs

Makerbot_Replicator2_sm

PRINTING



PRINT TECHNOLOGY

FUSED DEPOSITION MODELING



BUILD VOLUME

28.5 L X 15.3 W X 15.5 H CM

[11.2 X 6.0 X 6.1 IN]



LAYER RESOLUTION

100 MICRONS [0.0039 IN]



POSITIONING PRECISION

XY: 11 MICRONS [0.0004 IN]

Z: 2.5 MICRONS [0.0001 IN]



FILAMENT DIAMETER

1.75 MM [0.069 IN]



NOZZLE DIAMETER

0.4 MM [0.015 IN]



SOFTWARE BUNDLE

MAKERBOT MAKERWARE



FILE TYPES

STL, OBJ, THING



OPERATING SYSTEMS

WINDOWS (7+)

MAC OS X (10.6+)

LINUX (UBUNTU 12.04+)



CONNECTIVITY

USB, SD CARD (BOTH INCLUDED)







MECHANICAL



CHASSIS

POWDER COATED STEEL



BODY

PVC PANELS



BUILD PLATFORM

ACRYLIC



XYZ BEARINGS

WEAR-RESISTANT, OIL-INFUSED BRONZE



STEPPER MOTORS

1.8° STEP ANGLE WITH 1/16 MICRO-STEPPING



ELECTRICAL



STORAGE TEMPERATURE

0°–32° C [32°–90° F]



OPERATING TEMPERATURE

15°–32° C [60°–90° F]



AC INPUT

100–240 V, ~2 AMPS, 50–60 HZ



POWER REQUIREMENTS

24 V DC @ 6.25 AMPS

DIMENSIONS



PRODUCT DIMENSIONS

WITHOUT SPOOL

49 L X 32 W X 38 H CM

[19.1 X 12.8 X 14.7 IN]



WITH SPOOL

49 L X 42 W X 38 H CM

[19.1 X 16.5 X 14.7 IN]



SHIPPING DIMENSIONS

59 L X 55 W X 43 H CM

[23 X 21.5 X 17 IN]



PRODUCT WEIGHT

11.5 KG [25.4 LBS]



SHIPPING WEIGHT

16.8 KG [37.0 LBS]
