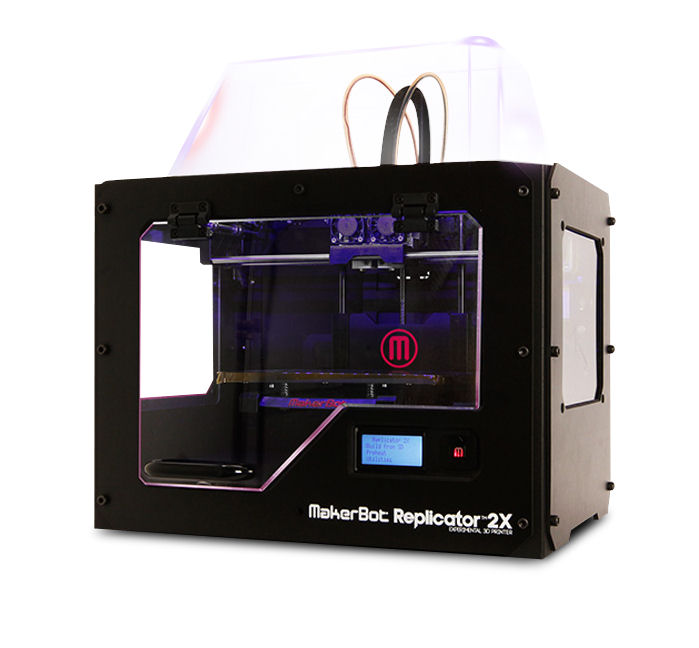

MakerBot Replicator 2x Tech Specs

MB_Replicator2X_sm

PRINTING



PRINT TECHNOLOGY

FUSED DEPOSITION MODELING



BUILD VOLUME

24.6 L X 15.2 W X 15.5 H CM

[9.7 X 6.0 X 6.1 IN]



LAYER RESOLUTION

100 MICRONS [0.0039 IN]



POSITIONING PRECISION

XY: 11 MICRONS [0.0004 IN]

Z: 2.5 MICRONS [0.0001 IN]



FILAMENT DIAMETER

1.75 MM [0.069 IN]



NOZZLE DIAMETER

0.4 MM [0.015 IN]



SOFTWARE BUNDLE

MAKERBOT MAKERWARE



FILE TYPES

STL, OBJ, THING



OPERATING SYSTEMS

WINDOWS (7+)

MAC OS X (10.6+)

LINUX (UBUNTU 12.04+)



CONNECTIVITY

USB, SD CARD (BOTH INCLUDED)

MECHANICAL



CHASSIS

POWDER COATED STEEL



BODY

PVC PANELS



BUILD PLATFORM

HEATED, BLACK ANODIZED 356F ALUMINUM



XYZ BEARINGS

WEAR-RESISTANT, OIL-INFUSED BRONZE



STEPPER MOTORS

1.8° STEP ANGLE WITH 1/16 MICRO-STEPPING



ELECTRICAL



STORAGE TEMPERATURE

0°–32° C [32°–90° F]



OPERATING TEMPERATURE

15°–32° C [60°–90° F]



AC INPUT

100–240 V, ~4 AMPS, 50–60 HZ



POWER REQUIREMENTS

24 V DC @ 9.2 AMPS

DIMENSIONS



PRODUCT DIMENSIONS

WITHOUT SPOOL

49 L X 32 W X 53.1 H CM

[19.1 X 12.8 X 20.9 IN]



WITH SPOOL

49 L X 42 W X 53.1 H CM

[19.1 X 16.5 X 20.9 IN]



SHIPPING DIMENSIONS

60.5 L X 58.4 W X 41.7 H CM

[23 X 23.8 X 16.4 IN]



PRODUCT WEIGHT

12.6 KG [27.8 LBS]



SHIPPING WEIGHT

17.8 KG [39.25 LBS]
