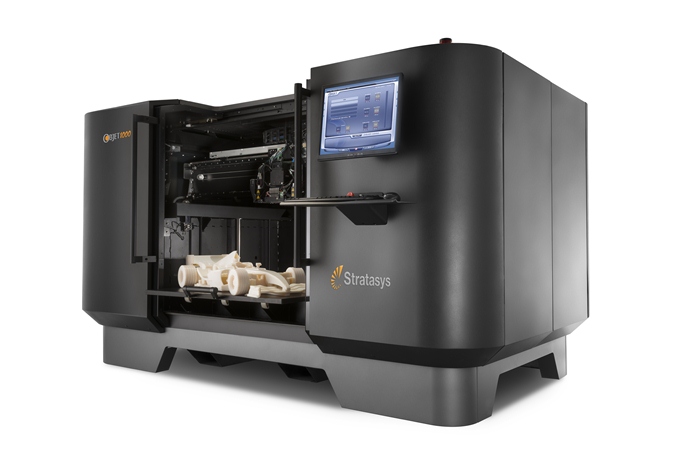

Objet 1000

objet1000_3d_printer
objet_1000_capture
Objet1000_bicycle-low

Objet1000 3D Printer Specifications



Support material:
FullCure 705 non-toxic gel-like photopolymer support

Material cartridges:

  • Six sealed 18 kg (39.6 lb) cartridges
  • Two different model materials loaded
  • Hot-swappable replacement during print

Net build size:
1000 x 800 x 500 mm (39.3 x 31.4 x 19.6 in.)

Layer thickness:
Horizontal build layers as fine as 16 microns (0.0006 in.)

Build resolution:
X-axis: 300 dpi; Y-axis: 300 dpi; Z-axis: 1600 dpi

Printing modes:

  • Digital Material (DM): 30-micron (0.001 in.)
  • High Quality (HQ): 16-micron (0.0006 in.)
  • High Speed (HS): 30-micron (0.001 in.)

Accuracy:
Up to 85 microns for features smaller than 50mm; Up to 600 microns for full model size (for rigid materials only, depending on geometry, build parameters and model orientation)

Input Format:
STL, OBJDF and SLC File

Workstation compatibility:
Windows 7 64 bit

Network connectivity:
LAN – TCP/IP

Size and weight:
2800 × 1800 × 1800 mm (110.3 × 70.9 × 70.9 in.); 1950kg (4300 lbs)

Print heads:
8 units

Power Requirements:
240 VAC 50/60 Hz; 32 A single phase

Operational Environment:
Temperature 18 C-22 C (64.5 F-71.5 F); relative humidity 30-70%

Special Facility Requirements:
Floor withstands 750 Kg/m2, air evacuation system

– See more at: http://www.stratasys.com/3d-printers/production-series/objet1000#content-slider-1
