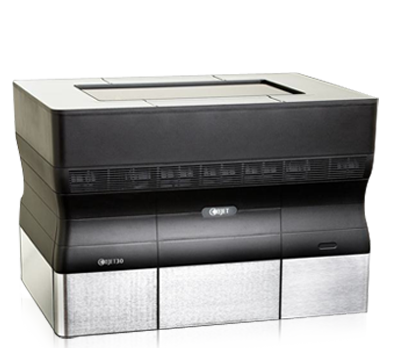

Objet 30

Objet30

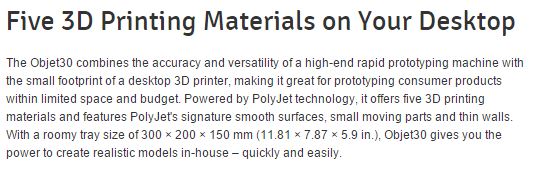

objet_30_summary
objet_30_sample

Specifications

3D print tough, flexible models

Model materials:

  • Rigid Opaque white (VeroWhitePlus)
  • Rigid Opaque blue (VeroBlue)
  • Rigid Opaque black (VeroBlack)
  • Rigid Opaque gray (VeroGray)
  • Polypropylene-like (DurusWhite)

Support material:
FullCure 705 non-toxic gel-like photopolymer support

Material cartridges:
Sealed four 1 Kg (2.2 lbs) cartridges

Net build size:
294 x 192 x 148.6 mm (11.57 x 7.55 x 5.85 in.)

Layer thickness:
28 microns (0.0011 in.)

Build resolution:
X-axis: 600 dpi; Y-axis: 600 dpi; Z-axis: 900 dpi

Accuracy:
0.1 mm (0.0039 in.) may vary depending on part geometry, size, orientation, material and post-processing method

Size and weight:
Machine: 82.5 × 62 × 59 cm (32.28 × 24.4 × 23.22 in.); 93 kg (205 lbs)
Tray size: 300 × 200 × 150 mm (11.81 × 7.87 × 5.9 in.)

Workstation compatibility:
Windows XP, Windows 7, Windows 8

Network connectivity:
Ethernet TCP/IP 10/100 base T

Jetting heads:
2 printing heads; SHR (Single Head Replacement)

Power requirements:
Single phase:

  • 100-120V~; 50-60Hz; 7A
  • 200-240V~; 50-60Hz; 3.5A

Regulatory compliance:
CE/FCC/RoHS

Operational environment:
Temperature 18 C-25 C (64 F-77 F); relative humidity 30-70 % (non-condensing)
